DMAIC process: a methodology to implement six sigma

DMAIC process

1 What is the DMAIC process?

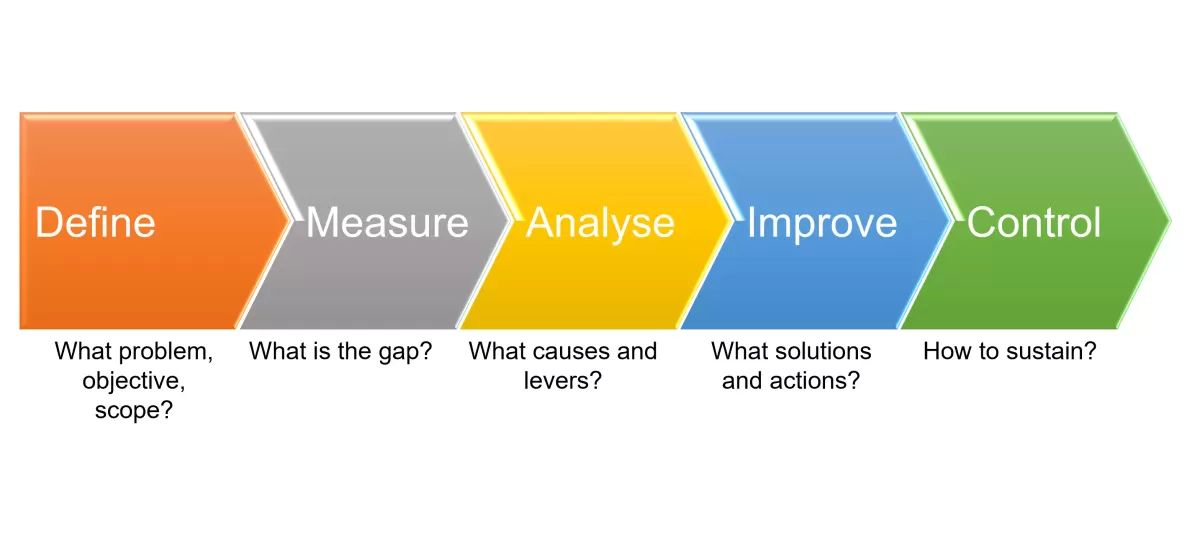

The DMAIC process is a structured continuous improvement process that aims to optimize processes and reduce variations in a business, industrial or transactional process. The acronym DMAIC stands for "Define", "Measure", "Analyze", "Improve" and "Control".

2. Origins of the DMAIC process

The DMAIC method was popularized by the American manufacturing giant, Motorola, in the 1980s as part of its Six Sigma process. Six Sigma is a management philosophy that focuses on improving quality by reducing errors and variations in processes. The DMAIC process has become the standard framework for conducting Six Sigma projects, although it can be used independently of Six Sigma.

3. Applications and conditions of application of the DMAIC process

The DMAIC process is applicable in many areas, ranging from manufacturing to finance, healthcare, education and beyond. It is particularly useful in situations where a process is unstable or underperforming. However, it is important to note that for the DMAIC process to be effective, an organization must be willing to invest time and resources in the process.

4. Benefits and challenges of the DMAIC process

4.1 Benefits of the DMAIC process

  1. Process improvement: DMAIC is designed to improve the effectiveness and efficiency of processes, leading to cost reduction and quality improvement.
  2. Data-driven approach: The extensive use of data and analysis in the DMAIC process helps make decisions based on hard facts rather than assumptions.
  3. Alignment with corporate goals: DMAIC projects are selected based on their potential to contribute to the company's strategic goals, ensuring alignment between improvement efforts and corporate objectives.
  4. Employee involvement: The DMAIC process encourages employee participation at all levels, which can improve employee engagement and job satisfaction.

4.2 Challenges of the DMAIC process

  1. Training and skill requirements: The DMAIC process requires specific data analysis and problem-solving skills. Training team members can be costly and time consuming.
  2. Resistance to change: As with any improvement initiative, DMAIC may encounter resistance from employees who are comfortable with existing processes.
  3. Complexity: DMAIC can be complex and time-consuming, especially for large projects that involve multiple stakeholders and processes.
  4. Project management: Successful DMAIC projects require strong project management skills. Issues such as missed deadlines, lack of resources, or unclear roles and responsibilities can hinder project progress.
  5. Need for management commitment: Without management commitment and support, it can be difficult to successfully complete a DMAIC project. The project sponsor plays a critical role in providing the necessary resources and removing barriers.

5. Steps of the DMAIC process

5.1 Definition Stage

5.1.1 Purpose

The first step is to clearly define the problem or opportunity for improvement. This involves understanding in detail the customer's needs and expectations, defining the project objectives and specifying the scope of the process concerned.

The first step is to clearly define the problem or opportunity for improvement. This involves understanding in detail the customer's needs and expectations, defining the project objectives and specifying the scope of the process concerned.

5.1.2 Main activities Understand the problem or opportunity
The objective is to clearly identify the problem or opportunity for improvement. This involves establishing the objectives of the project, defining the scope of the process involved, and understanding the customer's expectations. A well-defined problem facilitates the implementation of the following steps. Developing the project charter
The project charter is an important document that specifies the details of the project, including the problem, objectives, expected benefits, project boundaries, schedule, budget, roles and responsibilities, and key stakeholders.

5.1.3 Tools used
The Process Map and SIPOC Diagram can help visualize the existing process and identify potential areas for improvement. The Gantt Chart helps to plan and monitor the progress of the project.

5.2 Measurement Step

5.2.1 Objective

This step consists of assessing the current performance of the process. The objective is to collect process performance data to establish a baseline.

5.2.2 Main activities Understanding the current process
The objective is to collect information about the current process to understand how it works and how it performs. The objective is to establish a baseline against which to measure the effectiveness of the improvements made. Data Collection
Data collection is a critical step. The data must be relevant and reliable to provide an accurate picture of the process performance.

5.2.3 Tools Used
The Process Flow Diagram helps to visualize the process. Capability analysis is used to evaluate the current performance.

5.3 Analysis step

5.3.1 Purpose

The purpose of the analysis is to use the data collected to identify the causes of problems or variations in the process.

5.3.2 Main Activities Identify the causes of problems
The purpose of the analysis is to use the data collected to identify the root causes of problems or variations in the process. Prioritizing Causes
Once the potential causes have been identified, they must be prioritized according to their impact on the process. This step facilitates decision making during the Improvement step.

5.3.3 Tools used

The Pareto Chart, Analysis of Variance (ANOVA) and Cause and Effect Diagram are commonly used analysis tools.

5.4 Improvement Stage

5.4.1 Objective

This step consists of developing, testing and implementing solutions to reduce variability and improve the process.

5.4.2 Main activities Solution development
This involves developing solutions to address the identified root causes. Creativity and innovation are essential to provide effective solutions. Solution Testing and Implementation
Proposed solutions must be tested to ensure their effectiveness. If they prove to be effective, they are then implemented.

5.4.3 Tools used

Tools such as Interaction Effects Analysis, Design of Experiments and brainstorming are used.

5.5 Control step

5.5.1 Objective

The last step aims to maintain and standardize the improvements made, by setting up control plans, training the staff and documenting the changes.

5.5.2 Main Activities Establish Control Plans
The objective of this step is to sustain the improvements over the long term. To do this, it is necessary to set up control plans. Staff Training
Staff must be trained on the changes made so that they are implemented correctly and effectively.

5.5.3 Tools Used
Tools such as Statistical Control Charts, Process Flow Diagrams, and Procedure Manuals are used.

6 Conducting a DMAIC project

6.1 Managing the DMAIC project

Managing the DMAIC project requires a set of project management skills. These include:
  • Project planning: This includes establishing the project charter, defining the schedule, and planning resources.
  • Project Monitoring: This includes tracking the progress of the project against the original plan and making adjustments as necessary.
  • Communication: Regular communication with all stakeholders is essential to keep them informed of the project's progress, to obtain their feedback, and to ensure their commitment.
  • Risk management: Potential risks should be identified, their impact assessed, and strategies developed to mitigate them.

6.2 Composition of the Project Team

The DMAIC project team is multidisciplinary and may include:

  1. The Sponsor: This is usually a senior manager who has the authority to make decisions and mobilize resources. He/she validates the project's objectives and helps eliminate obstacles that may arise.
  2. The Project Manager: Often a Six Sigma Black Belt, the Project Manager leads the team, coordinates the work and liaises with the Sponsor and other stakeholders.
  3. Team Members: These are the people who know the process well and bring their expertise to the team. They may be Six Sigma Green Belts or other employees involved in the process.
  4. The Six Sigma Coach: He is often a Master Black Belt who brings his Six Sigma expertise, guides the team through the different steps of the DMAIC process, and provides training if necessary.

6.3 Skills required for DMAIC

To successfully implement DMAIC, several skills are required. These include an understanding of statistics, the ability to lead and manage change, strong communication skills, and the ability to work in a team. In addition, knowledge of specific DMAIC tools, such as process flow diagrams, cause-and-effect diagrams, and statistical process control tools, is also essential.

7 Do's and don'ts of DMAIC

7.1 Tips for success with DMAIC

Management commitment: Senior management commitment is crucial to the success of the DMAIC process. They must not only approve the project, but also actively participate in its follow-up.
Proper training: DMAIC teams must have appropriate training in statistics and project management. This includes understanding the specific tools of the DMAIC process.
Communication: Effective communication at all levels of the organization is essential to keep all stakeholders informed and engaged.

7.2 What to avoid

Not clearly defining the problem: A poorly defined problem can lead to ineffective solutions. It is therefore essential to spend sufficient time in the Definition stage.
Ignoring the voice of the customer: DMAIC is customer-centric. Ignoring customer needs and expectations can lead to improvements that are not valued by the customer.
Not following the DMAIC process: DMAIC is a structured process that must be followed in order. Ignoring a step can compromise the quality of the project.

8 Conclusion

In conclusion, DMAIC is a powerful continuous improvement process and can bring significant improvements to an organization. However, it also has challenges that must be addressed to ensure its success. Careful planning, proper training, strong leadership and open communication can help overcome these challenges.
